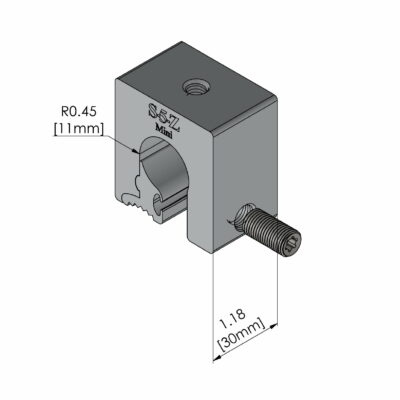

S-5-Z™ Mini Clamp
Brand: S-5!
The Z Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required.
The Z Mini clamp is a bit shorter than the standard Z with one setscrew rather than two.
All standard and Mini clamps undergo rigorous load testing. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (drag load) is performed on all standard clamps.
$27.27
Contact Us
Inventory Details
Vancouver
N/A
Edmonton
N/A
Calgary
N/A
Stratford
N/A
Dartmouth
N/A
Barrie
N/A
Victoria
N/A
In Stock – Product is in stock, available and ready to ship.
Low Stock – Product has limited stock available and ready to ship.
Arriving Soon – Product is on order from the manufacture and will ship on arrival.
Contact Us – Currently out of stock, unavailable or available thru special order.
Discontinued – Product no longer available.
Product Overview
- Specially designed to fit Zip-Rib®, BEMO, Kalzip® and similar profiles with a round “bulb” seam configuration and seam diameters of ≤ 7/8” (22 mm)
- Two-piece clamp design means you can easily install anywhere along
the rib - Light and medium-duty applications, such as utility mounting
- Smaller than the standard S-5-Z
- One T-30 Torx round-point setscrew (Torx bit tip provided)
- No M8 bolt included
Product Specifications
Fits Metal Roof Manufacture: Aluform System GmbH & Co. KGAsh & Lacy Building SystemsBemoBerridgeBHPBridger Steel IncCoated Metals Group (CMG)CorusCustom Bilt MetalsDimondHoogovens Aluminum Building SystemsInc.Kingspan UKMerchant & EvansNorth Star Metals Mfg CoPremier MetalsSchlebachSheet Metal Supply LTDSpeedDeck Building SystemsTegral Metal FormingZimmerman Metals
Fits Metal Roof Profile: 1-1/2” Nail Strip, 1.5 Nail Strip, Alufalz, AshZip, AshZip Embossed Aluminum, Bemo Roof, Cee-Lock, Dimondek 400, High Seam Tee-Panel, Interfalz, Kal Zip, Kalzip 65, KingZip, Loc Star, NS-1.5, SL-1500, SLZ 1500, SpeedZip, Standing Seam 1.5, Tegnal Alu-Seam, Ultra-Flange 1.5, VF - Profil, Zip Rib
Fits Metal Roof Seam Type: 1.5" Batten Cap, 1.5" Single Fold, 1.5" Snap Seam, 1.5" Nail Strip, 1.75" Bulb Seam (EU), 2.5" Bulb Seam, Conceal Fix Narrow
Weight: 0.3 lbs
Dimensions: 10 × 8 × 6 in
