S-5! VersaGard™
Brand: S-5!
VersaGard is a metal roof bracket used for both PV installation and snow retention on exposed-fastened metal roofs.
VersaGard functions as an L-Foot and mounting base in one component for PV rail mounting. The bracket is specifically designed with a factory-applied, butyl sealant offering a long-term service life, free from UV degradation, drying and cracking. No unreliable, field-applied caulking is needed.
$16.29
Contact Us
Inventory Details
Vancouver
N/A
Edmonton
N/A
Calgary
N/A
Stratford
N/A
Dartmouth
N/A
Barrie
N/A
Victoria
N/A
In Stock – Product is in stock, available and ready to ship.
Low Stock – Product has limited stock available and ready to ship.
Arriving Soon – Product is on order from the manufacture and will ship on arrival.
Contact Us – Currently out of stock, unavailable or available thru special order.
Discontinued – Product no longer available.
Product Overview
Product Specifications
- Use in lieu of an L-Foot
- Use with any side-mount rail system
- Install either parallel or perpendicular to slope
- Diagonal “slot” provides 1-¾” (45 mm) of height adjustability via the use of 3/8″ (9.5 mm), M8 or M10 bolts
- Integral reservoir prevents over- compression and preserves butyl seal by preventing UV exposure
- Up to six points of attachment
- Must attach to deck or structure (i.e., wood decking, wood or steel purlins, or trusses)
- Select the appropriate S-5! fastener (sold separately) for steel or wood attachments
Product Specifications
Weight: 0.3 lbs

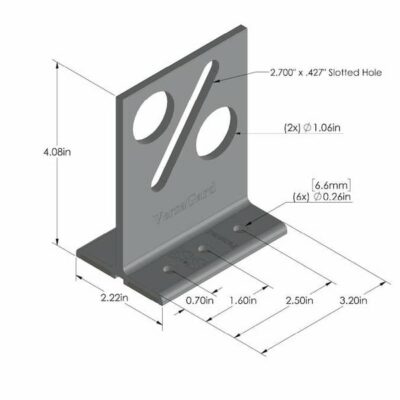

Dimensions: 3.2 × 2.22 × 4.08 in
