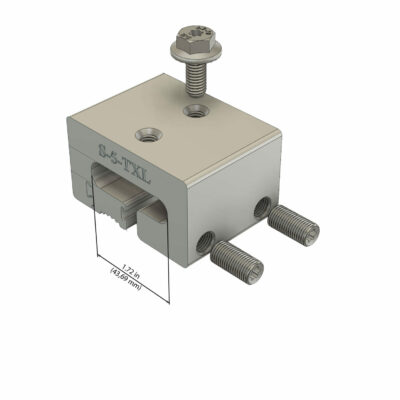

S-5-TXL™ Clamp
Brand: S-5!
The S-5-TXL (“TXL” is for extra-large “T”) is specifically designed for the McElroy Metal Trap-Tee and Morin® SymmeTry® metal roof profiles. An innovative insert makes installation a breeze anywhere along the seam.
The S-5-TXL is ideal for T-shaped standing seam profiles with a horizontal projection of up to 1.7″ (43 mm).
Rely on the non-penetrating S-5-TXL standing seam clamp for your heavy-duty snow guard system, as well as high-wind applications. Pair with ColorGard® for a robust snow guard system that reduces the risk of roof avalanches.
Like all of S-5!’s standard and mini clamps, the S-5-TXL has undergone rigorous load testing, including normal-to-seam (pull-up) and parallel-to-seam (drag load).
The S-5-TXL has two setscrews that will dimple the roofing material but will not penetrate it, ultimately leaving the roof’s warranty intact.
Contact Us
Inventory Details
Vancouver
N/A
Edmonton
N/A
Calgary
N/A
Stratford
N/A
Dartmouth
N/A
Barrie
N/A
Victoria
N/A
In Stock – Product is in stock, available and ready to ship.
Low Stock – Product has limited stock available and ready to ship.
Arriving Soon – Product is on order from the manufacture and will ship on arrival.
Contact Us – Currently out of stock, unavailable or available thru special order.
Discontinued – Product no longer available.
Product Overview
Product Specifications:
- Developed for McElroy Metal Trap-Tee and Morin® SymmeTry® roof profiles.
- Innovative insert slides into place and allows the clamp to be placed over the top of the seam at any desired location
- 6000 Series aluminum
- Heavy-duty applications, such as snow retention and high wind
- Two T-30 Torx round-point setscrews (Torx bit tip provided)
- One M8 bolt included
Product Specifications
Fits Metal Roof Seam Type: 2.75" T Seam
Weight: 5 lbs
Dimensions: 10 × 8 × 8 in
