S-5! CorruBracket™ 500T PV
Brand: S-5!
Specifically Designed to Marry with the PVKIT®
With the CorruBracket 500T PV, the “500” bracket designation refers to metric dimensioning. See the “100” for imperial compatibility.

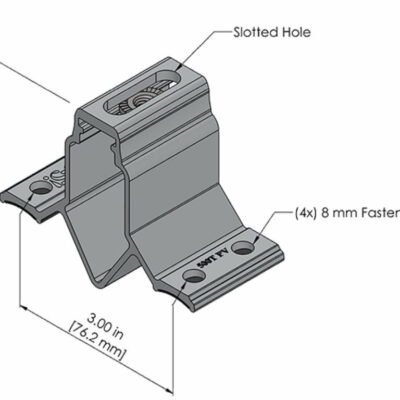

The 500T PV is designed to be paired with the S-5-PVKIT for direct-attach™ solar mounting. The 500T PV features a slotted hole for 25 mm of adjustability, as well as an open channel for wire management.
Choose the 500T PV for mounting to 16-22 mm (H) x 76 mm rib-pitch corrugated roofing profiles.
Attachment Versatility
The 500T PV fastens into the sheeting-only (self-piercing screws provided), allowing you to position the metal roof bracket anywhere along the roof ribs. You can also use the 500T PV for attachment of solar inverters and/or optimizers. The bracket’s “V” configuration helps prevent crushing of the ribs when PV modules experience down-force such as snow loads.
Contact Us
Inventory Details
Vancouver
N/A
Edmonton
N/A
Calgary
N/A
Stratford
N/A
Dartmouth
N/A
Barrie
N/A
Victoria
N/A
In Stock – Product is in stock, available and ready to ship.
Low Stock – Product has limited stock available and ready to ship.
Arriving Soon – Product is on order from the manufacture and will ship on arrival.
Contact Us – Currently out of stock, unavailable or available thru special order.
Discontinued – Product no longer available.
Product Overview
Specifically Designed to Marry with the PVKIT®
With the CorruBracket 500T PV, the “500” bracket designation refers to metric dimensioning. See the “100” for imperial compatibility.
The 500T PV is designed to be paired with the S-5-PVKIT for direct-attach™ solar mounting. The 500T PV features a slotted hole for 25 mm of adjustability, as well as an open channel for wire management.
Choose the 500T PV for mounting to 16-22 mm (H) x 76 mm rib-pitch corrugated roofing profiles.
Attachment Versatility
The 500T PV fastens into the sheeting-only (self-piercing screws provided), allowing you to position the metal roof bracket anywhere along the roof ribs. You can also use the 500T PV for attachment of solar inverters and/or optimizers. The bracket’s “V” configuration helps prevent crushing of the ribs when PV modules experience down-force such as snow loads.
CorruBracket 500T PV Product Specifications:
- 16-22 mm (H) x 76 mm rib-pitch corrugated roofing
- Mounts directly into crest of corrugation, straddling valley
- Four pre-punched holes in base
- Open channel for wire containment/management
- Fastens into sheeting-only with provided stainless-capped piercing fasteners
- Bracket allows module glass to sit 100+ mm above valley of corrugation
- Slotted top hole offers 25+ mm of adjustability
- PVKIT® 2.0 compatible
- Allows for attachment of solar inverters and/or optimizers
- 4 self-piercing screws and 1 M8 nut included
Product Specifications
Weight: 10 lbs
Dimensions: 10 × 8 × 8 in
