Morningstar – SK-6 SunKeeper 6 Amp Charge Controller

Name: Morningstar - SK-6 SunKeeper 6 Amp Charge Controller | SK-6 | Circuit Solar
Brand: Morningstar
SKU: SK-6
Price: 122.72 CAD
Availability: InStock

Brand: Morningstar

SKU: SK-6

SunKeeper™ solar controller provides a low cost regulated output directly from the solar module to maximize battery life in small solar power applications. The SunKeeper is epoxy encapsulated and rated for outdoor use. By mounting directly to the module junction box and wiring through the junction box knockout, the connection is weather-proof. This eliminates the need for an additional housing for the controller.

“This is a great little unit…an outstanding charge controller”

$122.72

or $10.79/mo for 12 mo at 9.96% APR with Affirm

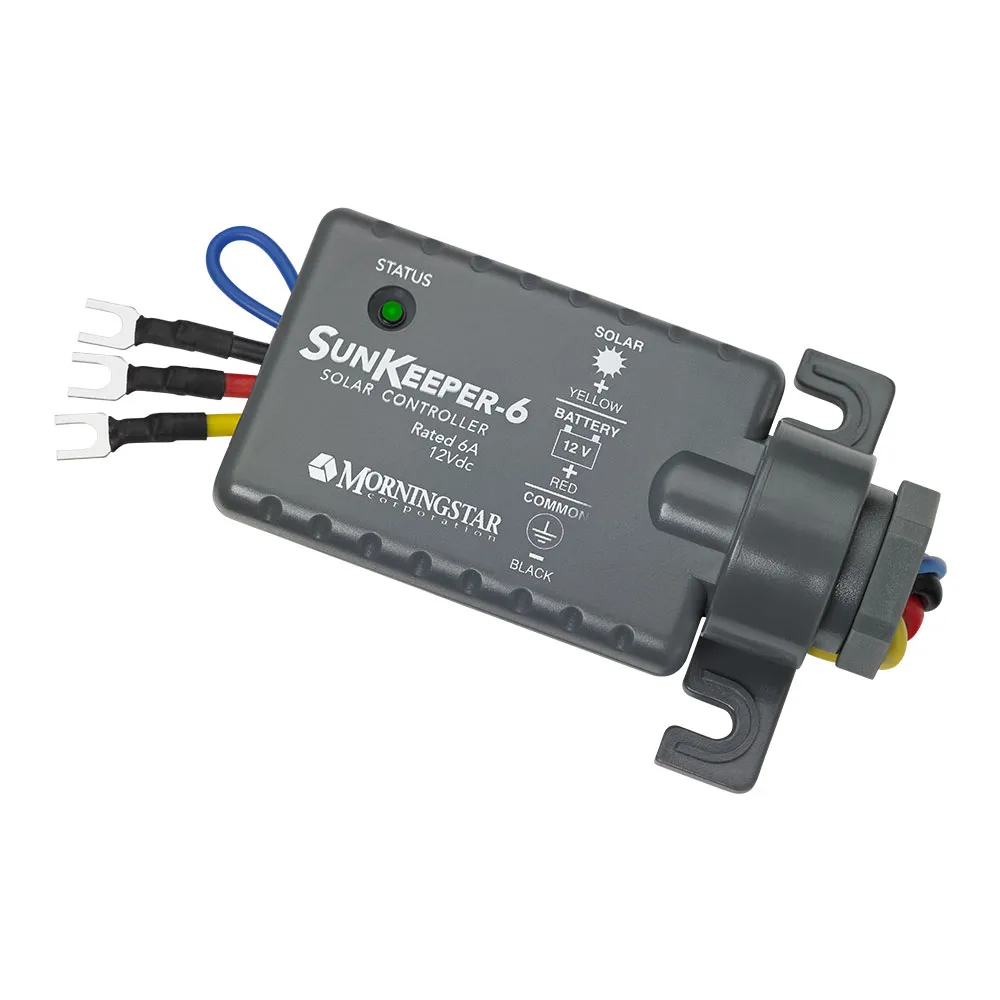

Morningstar SK-6 SunKeeper 6 Amp Charge Controller, a compact and efficient charge controller designed for solar power systems, providing reliable battery charging and protection with a 6 amp capacity.

Price Match Guarantee

Found a lower price? We’ll match it!

Proudly Canadian

Owned and Operated!

Product Overview

High Temperature Rated
Rated to 70°C to operate in high temperatures at the solar module. More reliable than controllers mounted inside the junction box. Uses very low on-resistance power MOSFET’s. No need to re-rate.
Outdoor Rated Rugged Design
ETL approved for outdoor use without an additional enclosure. Rugged IP65, UV resistant case. Epoxy encapsulated printed circuit board and watertight connection to the module junction box.
Ideal for Oil/Gas Applications
Specifically designed for solar power systems in the oil/gas industry. Approved for use in Class 1, Division 2, Groups A,B,C,D.
Extensive Electronic Protections
Fully protected against reverse polarity, short circuit, overcurrent, lightning and transient surges, high temperature and reverse current at night.
Longer Battery Life
Series PWM with 3 stage charging: bulk, PWM regulation and float. Includes temperature compensation at the controller or alternatively at the battery when using optional remote temperature sensor. Able to charge a zero voltage battery.
More Information
Bi-color LED is easy to read from the ground when the solar module is pole-mounted. Indicates solar charging, regulation, normal nighttime operation and any controller or system faults.
Easy to Install
Fits standard half inch conduit knockout (PG 13.5, M20) in module junction box. Quickly fastens with included locknut. Wires have fork connectors for easy connection to solar module terminals.
